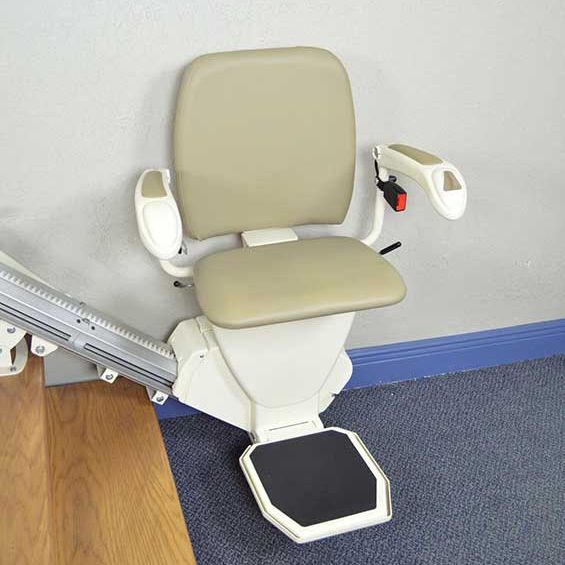

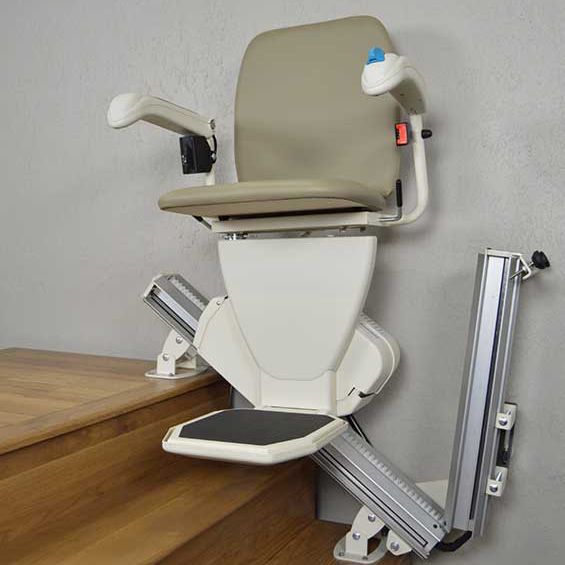

The SL600 Pinnacle Straight Stair Lift is designed to help restore safe and independent access to every level of your home. With a lifting capacity of 350 lbs (160 kg), it provides a reliable and comfortable way to travel up and down straight staircases.

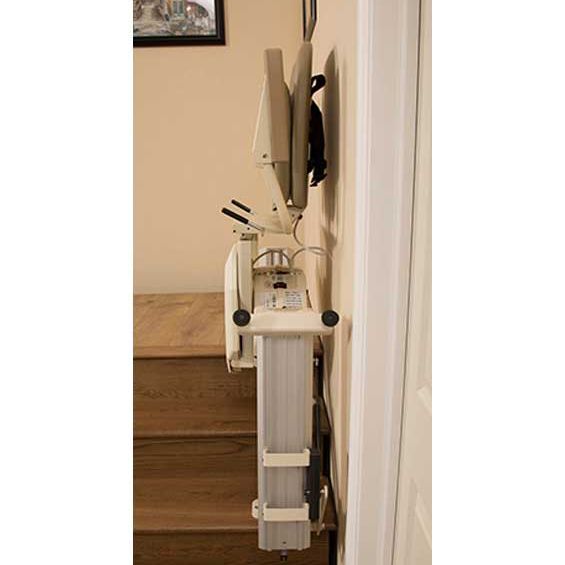

The SL600 features a smooth and quiet nylon polymer helical worm gear drive that requires no grease or lubrication, making it clean, low-maintenance and easy to care for. Its compact design makes it particularly suitable for narrower stairways, folding down to just 10.5 inches wide.

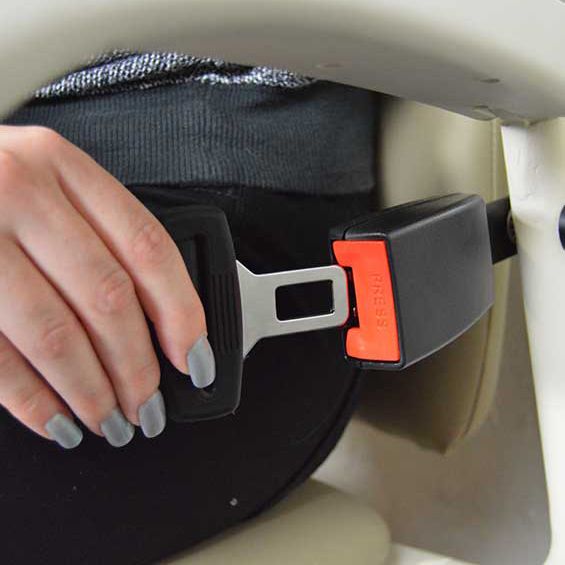

For added convenience, the SL600 can operate during a power outage, providing up to 60 trips on battery power. Safety sensors on the footrest and chassis automatically stop the lift when an obstruction is detected, while the retractable seat belt and swivel seat cut-off switch provide additional protection.
Optional power seat swivel and power footrest features are also available to make getting on and off the stair lift easier and more comfortable.
General
350 lbs / 160 kg
20 FPM
Nylon Polymer Helical Worm Gear
32º – 52º
24V DC
120 / 240 VAC
14 Amps
Yes
Centrifugal Overspeed Break, Swivel Seat Cut-off Switch
Bi-directional Footrest Obstruction Sensor
Chassis Obstruction Sensors, Retractable Seat Belt
Extruded Aluminum
16 ft is standard; lengths available up to 70 ft
Warranty
Limited Lifetime
1 Year
Dimensions
10.5″
17″
15.5″
